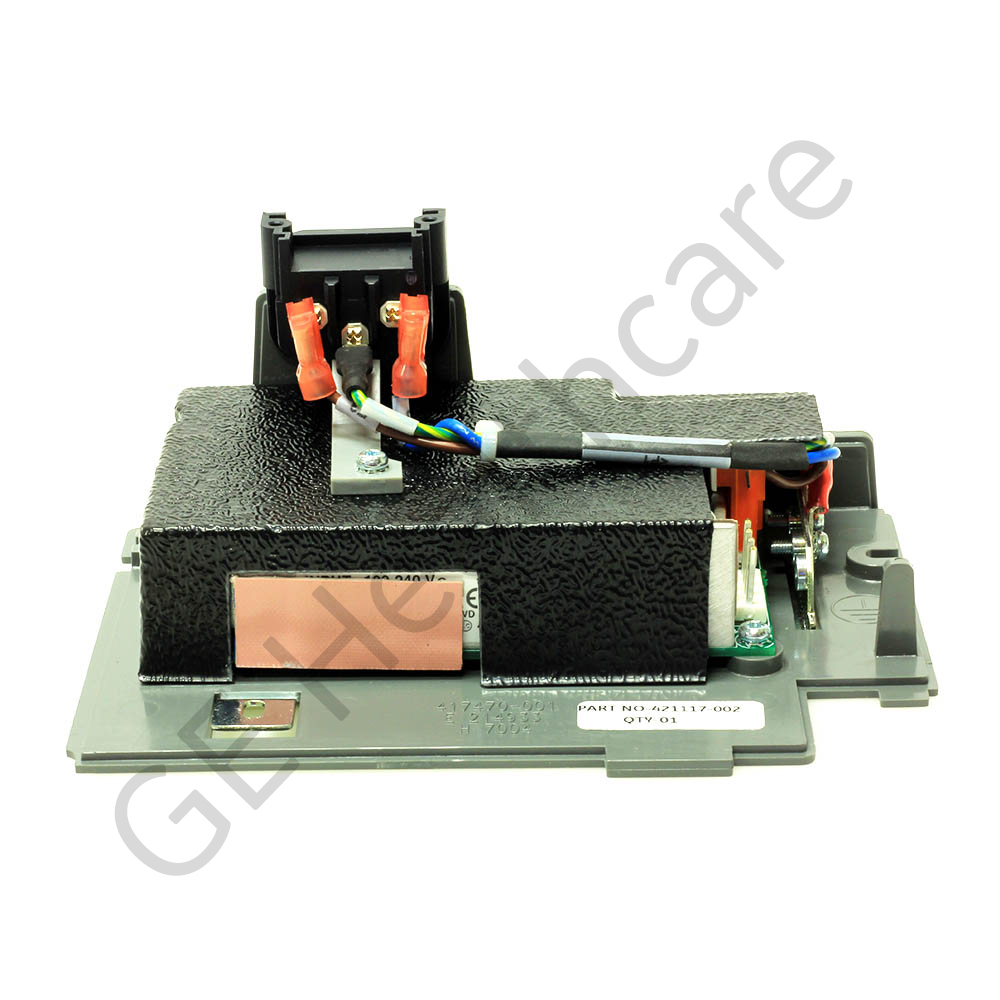

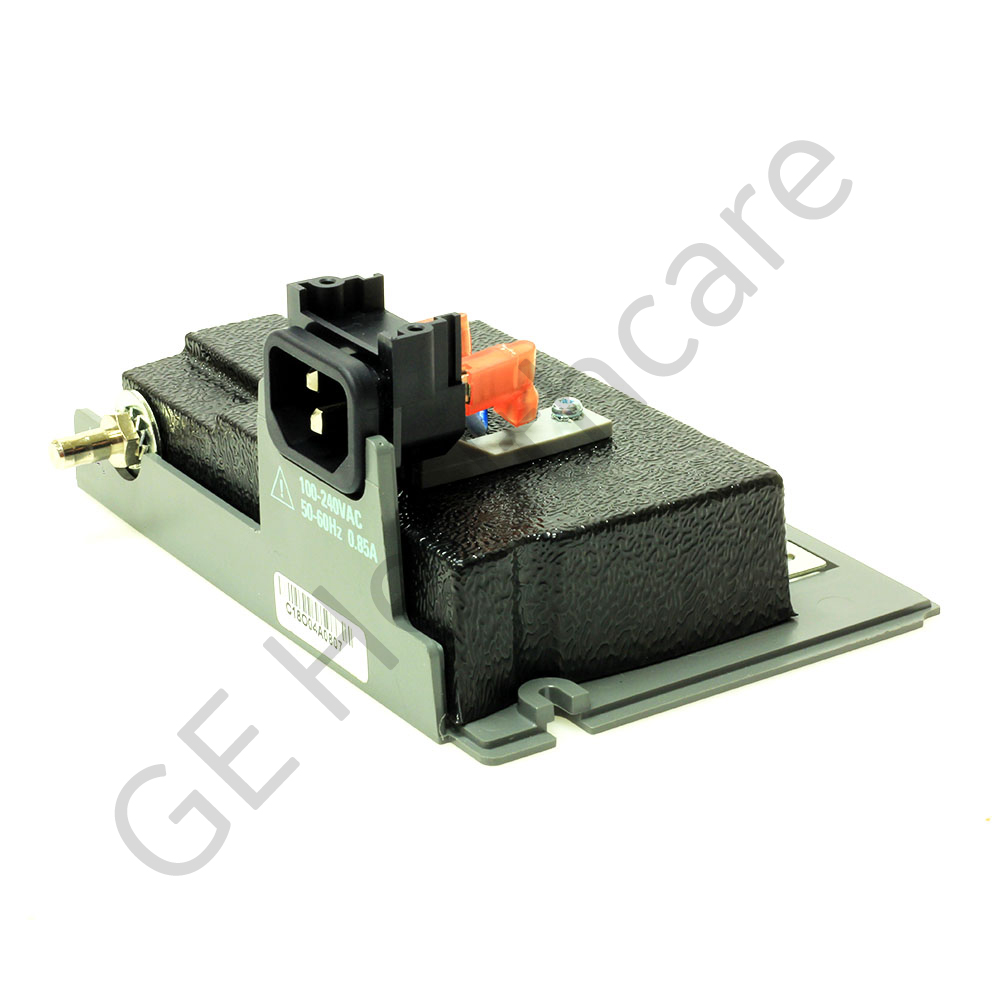

Power Supply Assembly MAC 5000 - RoHS
| 421117-002 | |
| 421117-001 | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Safe to use
- Compact design
- Medically approved switcher
- Reliable performance
Product Overview
The Power Supply Assembly MAC 5000 RoHS is a power supply unit of having 28 volts and 1 A as output voltage and output currents respectively. The output power the unit is 28 W. This unit is one of the most compactly designed and is medically approved. It has a wide range of AC input which is varying from 85 to 264 VAC. The overload protection ability is excellent and gives protection against short circuiting and output overload. It is factory set with fixed resistors to adjust the voltage to maximize reliability. It gives a maximum efficiency of up to 70%. The input as fuse is designed to blow only if a catastrophic failure occurs. The current leakage is less than 25 microamps. It is UL certified. Its flexibility gives a wide range of inputs makes it available for a wide range of applications. The covers are made up of an ABS material. It has strong impact and heat resistant properties, which protects the power unit form external environments. This power unit is also used in the battery to board and the display assembly of the Mac5500.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 421117-001 | POWER SUPPLY 421117-001 |
